A built-in hob can define the visual order of a kitchen, but its installation begins below the surface. To measure hob cutout dimensions correctly, you need more than the appliance’s overall width and depth. The countertop opening, supporting cabinetry, ventilation space, and safety clearances must work together precisely.
For a premium kitchen, this is not a detail to leave to assumption. A cutout that is even slightly too large can compromise the finished appearance and support of the hob. One that is too small may require costly alterations to stone, quartz, porcelain, or solid-surface worktops. Careful measurement protects both the appliance investment and the integrity of the kitchen design.
Why Hob Dimensions and Cutout Dimensions Differ
The dimensions shown on a hob product page often describe the appliance’s external footprint. This includes the glass, trim, or metal frame visible above the countertop. The cutout dimension is the opening required beneath that surface, where the body of the appliance sits inside the cabinet.
A 30-inch hob, for example, is not necessarily installed into a 30-inch opening. Its glass edge may extend beyond a smaller rectangular cutout to create a clean, supported finish. The exact relationship varies by model, which is why appliance size should never be used as a substitute for the installation specification.
The manufacturer’s installation drawing is the controlling document. It sets out the cutout width and depth, minimum worktop thickness, required clearances, electrical or gas connection locations, and ventilation requirements. Use the drawing for the exact hob model selected, not a similar-looking appliance or an older kitchen plan.
What You Need Before You Measure a Hob Cutout
Measure only after the final countertop material, cabinet layout, and hob model have been confirmed. Changes in any one of these elements can alter the installation requirements. This is particularly relevant in tailored villa kitchens and high-rise apartments, where cabinetry may be designed around integrated ovens, drawers, or specialized ventilation systems.
Have a steel tape measure, pencil, straightedge, square, and the model-specific installation template or technical drawing available. A laser measure can be useful for checking cabinet runs, but a steel tape and square remain essential when marking a small, highly visible opening.
It is also worth confirming whether the countertop has already been fabricated. With natural stone, sintered stone, and engineered quartz, the fabricator should receive the approved technical drawing before cutting begins. Alterations after installation are possible in some cases, but they are rarely ideal and may affect the finish, strength, or warranty of the worktop.

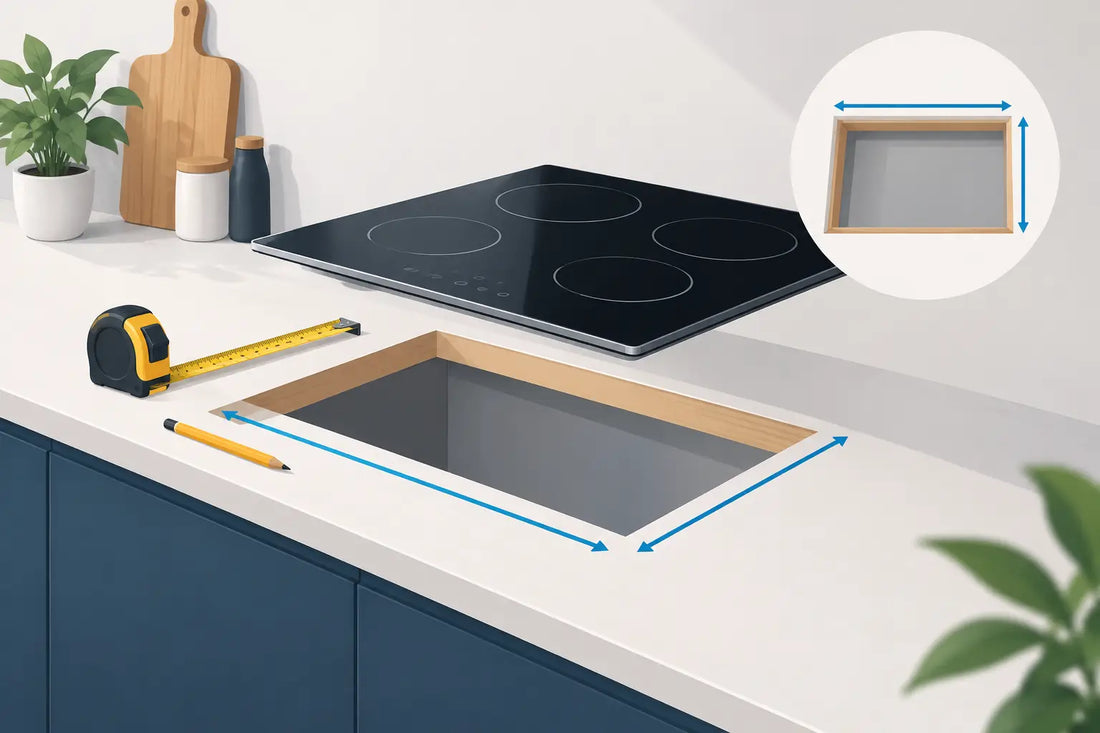

How to Measure Hob Cutout Dimensions Accurately
Start with the appliance specification
Locate the manufacturer’s stated cutout width and cutout depth. These may be provided in inches, millimeters, or both. Do not round measurements to match standard cabinet modules. A few millimeters can matter, especially where the hob has a flush-fit installation option or a slim support flange.
If a template is supplied, check that it belongs to the exact model and revision. A template is a marking aid, not a replacement for reading the clearance instructions. Confirm the indicated front, rear, left, and right orientation before placing it on the countertop.
Establish the cabinet centerline
Mark the centerline of the base cabinet or intended cooking zone. Then mark the centerline of the hob cutout from the technical drawing. Aligning these lines keeps the appliance visually balanced with ovens, range hoods, backsplash features, and surrounding cabinet doors.
In a symmetrical kitchen composition, a hob that is offset by even a small amount can be immediately noticeable. This is especially true beneath a statement range hood or within a stone backsplash that has prominent veining. Centering should be checked from the finished room view, not only from the cabinet interior.
Mark width and depth from the centerline
Divide the specified cutout width in half and measure outward from the centerline in both directions. Repeat the process for depth. This is more accurate than measuring from a cabinet edge, which may not be perfectly square or may vary slightly once panels and countertop overhangs are considered.
Use a square to ensure the marked corners are true 90-degree angles unless the installation drawing specifically indicates rounded corners or another shape. Measure both diagonals of the marked rectangle. Matching diagonals confirm that the opening is square before any cutting takes place.
Check the position twice before cutting
Before the fabricator cuts, place the hob or its template over the marked area where practical. Confirm that the visible frame will sit evenly on the countertop and that the controls will face the correct direction. Check the planned position against nearby walls, rear upstands, appliance towers, and countertop joints.
This final check is particularly valuable with stone counters. A cutout positioned too close to a weak point, a corner, or a joint can increase the risk of cracking. The countertop professional may recommend reinforcement or a revised location based on the material and its support structure.
Allow for Clearances Below and Around the Hob
A correct opening is only one part of a safe built-in installation. Every hob needs free space around and beneath its body to manage heat, protect adjacent materials, and allow technicians to access required connections.
The clearance behind the hob matters when it is installed near a backsplash, wall, or countertop upstand. Side clearances matter near tall panels and combustible surfaces. Below the hob, the distance to an oven, drawer, shelf, or divider must match the appliance requirements. Induction hobs often require a dedicated airflow path beneath the unit to keep internal components operating within their intended temperature range.
Do not assume a drawer can be installed directly under the hob simply because it fits within the cabinet plan. The hob’s underside, power cable, cooling fan, and air intake may occupy that space. A shallow drawer, protective panel, or ventilation gap may be required instead.
Gas hobs require equally careful planning. Gas supply routing, shutoff valve access, heat protection, and local installation requirements should be addressed by a qualified professional. Electrical work and gas connection are not finishing tasks to be improvised after the countertop is in place.
Consider the Countertop Material and Thickness
Countertop thickness affects how the hob sits and how it is supported. A thin porcelain slab may require a different reinforcement approach than a thick natural-stone counter. Some installations need sealing around the cut edge to protect susceptible materials from moisture, while others use supplied clips, brackets, or gaskets to secure the appliance.
Avoid adding adhesives, foam, or sealants unless they are approved in the installation instructions. Products chosen with good intentions can restrict ventilation, make future servicing difficult, or react poorly with the countertop finish. The intended installation method is engineered to hold the hob securely while allowing proper expansion and access.
For a flush-mounted design, tolerances are more exacting. The countertop recess must match the appliance profile closely, and the fabricator needs the manufacturer’s detailed drawing early in the project. The result can be exceptionally refined, but it demands experienced workmanship and careful coordination.
Coordinate the Hob with Ventilation and Cabinetry
The best hob location is not determined by the countertop opening alone. It should be coordinated with the range hood, ducting route, electrical capacity, and cooking habits of the household. A wide induction or gas hob may call for a correspondingly capable ventilation solution, particularly in open-plan homes where cooking performance and air quality shape the wider living space.
Cabinetmakers, countertop fabricators, appliance specialists, and installers should work from the same final specification. This avoids a common project issue: cabinetry is completed for one hob size while the selected appliance requires different clearances or a deeper body. Premium appliances perform at their best when the surrounding kitchen is designed to support them from the outset.
Robam UAE’s built-in cooking and ventilation collections are designed for this level of coordinated planning, where powerful performance and refined integration are considered together rather than as separate decisions.
A Final Check Before Installation
Once the cutout is complete, measure it again at the front, center, and rear. Confirm the dimensions against the technical sheet, inspect the cut edges, and verify that the cabinet interior is clear of obstructions. Do not force the hob into place. It should settle into its intended position without pressure on the glass, frame, or countertop.
A precisely measured opening is quiet work that produces a visible result: a hob that sits balanced, secure, and purposeful within the kitchen. Give this stage the same attention as the appliance selection, and the finished cooking space will feel considered for years to come.
